A-A-2664

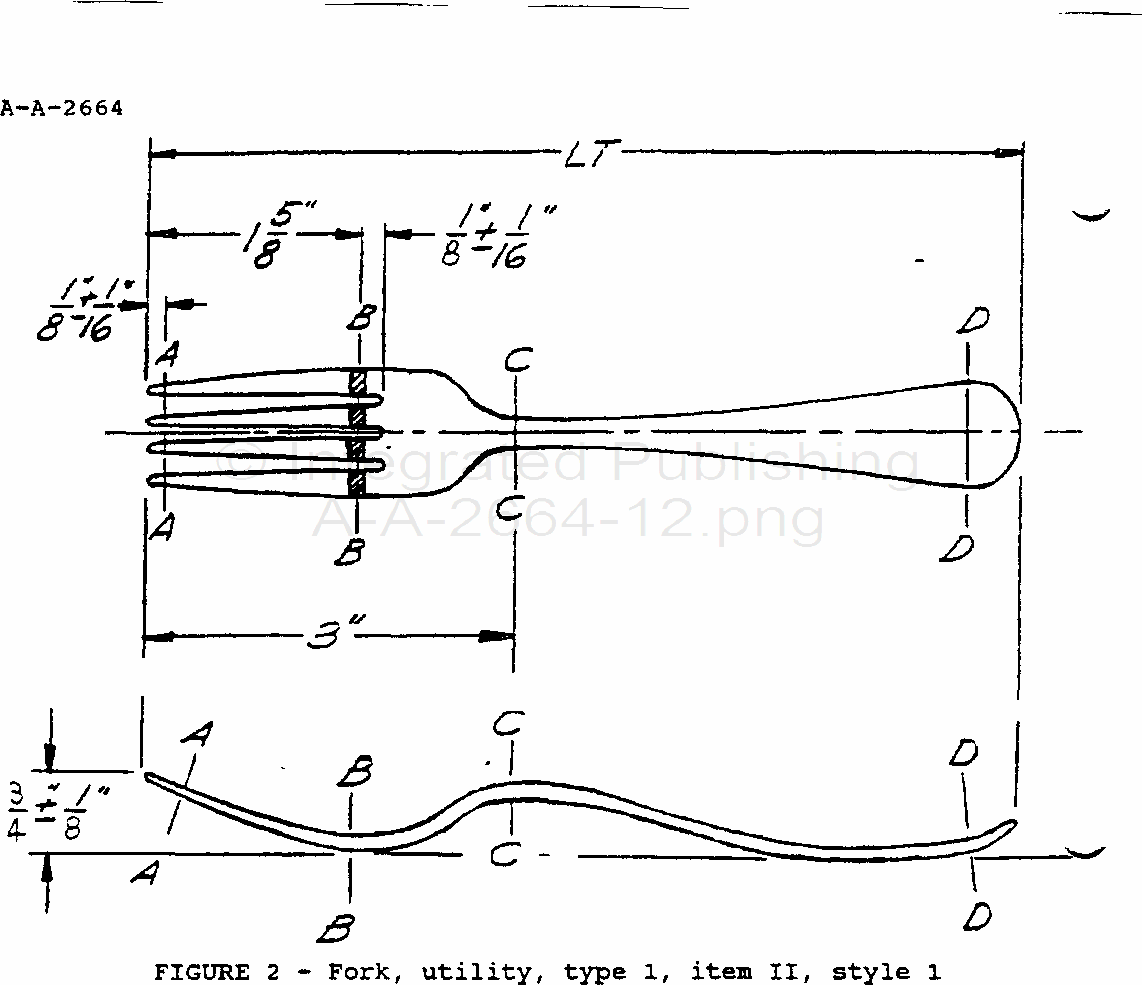

TABLE II – Type 1, item II, style 1, utility fork
|
Measurements |
Dimensions (inches) |
|
|
Minimum |
Maximum |
|
|
Overall length, LT |
6-15/16 |
7-1/8 |
|
Width at AA (1/8 “ from tip of tine) |
0.700 |
0.775 |
|
Thickness at AA (1/8” from tip of tine) |
0.060 |
0.080 |
|
Width at BB (1/8” from the base tine) |
0.900 |
0.950 |
|
Thickness at BB (1/8” from the base tine) |
0.072 |
0.095 |
|
Width at CC (at narrowest section) |
0.190 |
0.260 |
|
Thickness at CC (at narrowest section) |
0.072 |
0.135 |
|
Maximum width of handle, DD |
0.735 |
0.860 |
|
Thickness at widest point of handle, DD |
0.060 |
0.095 |
|
Tine Length, TL |
1-3/4 |
1-15/16 |
